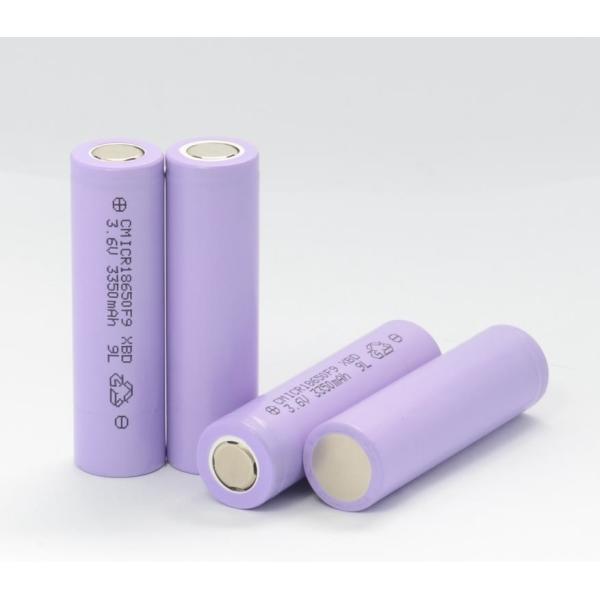

18650 3.6V 3350mAh Lithium Battery Cell Rechargeable ICR18650F
CHAM Lithium Ion 3.6V 3350mAh 18650 Battery Cell ICR18650F9 Rechargeable Battery
Cham Battery has been focusing only on 1860 cylindrical cell production for the last 17 years. Cham are the 18650 experts for products ranging from individual cells, simple battery packs and sophisticated EV pack modules.
Led by the Chief of Chinese Academy of Sciences, CHAM RD team has unveiled many techonology breakthrough over the years, including 255 patents in our current porfolio.
Specification of Lithium Ion 3.6V 3350mAh 18650 Battery Cell ICR18650F9
1. Material: pure ternary material (nickel, cobalt, manganese)
2. Capacity Nominal Capacity:3350mAh (discharge with 0.2C to 2.5V)
Minimum Capacity:3250mAh (discharge with 0.2C to 2.5V)
3. Nominal Voltage 3.6 V
4. Internal Impedance(AC 1KHZ) ≤ 60mΩ
5. Standard ChargeConstant Current: 0.3C (975mA)
Constant Voltage: 4.2V
End Current: 50mA
6. Max. Charge Voltage 4.2±0.05V
7. Max. Charge Current 0.5C (1625mA)
8. Standard DischargeConstant Current: 0.2C (650mA)
End Voltage: 2.5V
9. Max. Discharge Current -20~5℃: 0.5C (1625mA) 5~50℃: 1.5C (4875mA)
10. Max. Pulse Discharge Current 2C (6500mA)
11. Operating Temperature Charge:0 ~ 45℃ Discharge:-20 ~ 50℃
12. Storage Temperature (for shipping state) within one month: -20 ~ 50℃
within three months: -20~ 45℃
within one year: 0~45℃
13. Weight Max. 49.0 g
14. Max. DimensionDiameter (φ): 18.6mmHeight (H) : 65.3mm
15. Production: can be made to battery pack in series or parallel.
Other capacity are also available
| Type | Model No. | Capacity |
| High capacity type | ICR18650F9/F9L | 3350mAh |
| ICR18650F8/F8R | 2600mAh |
| ICR18650F5/F56 | 2200mAh |
| High power type | ICR18650F9M | 3200mAh |
| ICR18650F8L | 2600mAh |
| ICR18650F8P | 2500mAh |
Battery pack Lithium Ion 3.6V 3350mAh 18650 Battery Cell ICR18650F9 can be made
Related battery holder bracket for Lithium Ion 3.6V 3350mAh 18650 Battery Cell ICR18650F9
Related nickel strip of Lithium Ion 3.6V 3350mAh 18650 Battery Cell ICR18650F9
Package For Cell Lithium Ion 3.6V 3350mAh 18650 Battery
1. 2pcs in a plastic box, 35box in a carton.
2. Individual package with white box, 2 box in a bigger box,then in a carton .
3. For big quantity we use pallet to protect the battery.
Package For Pack:
1. Individual package of each pack, the in a carton.
How long does the delivery takes?
· Within 2-3 days after receiving payment(based on actual quantity).
· Tracking NO. will be sent to you after delivery, and we will track the goods for you until you receive all of them.
· DHL/FedEx/UPS: 8-10 workdays.
· Air Shipping: 5-7 workdays.
· Sea Shipping: 20-28 days.
· By train: 45-55 days .
